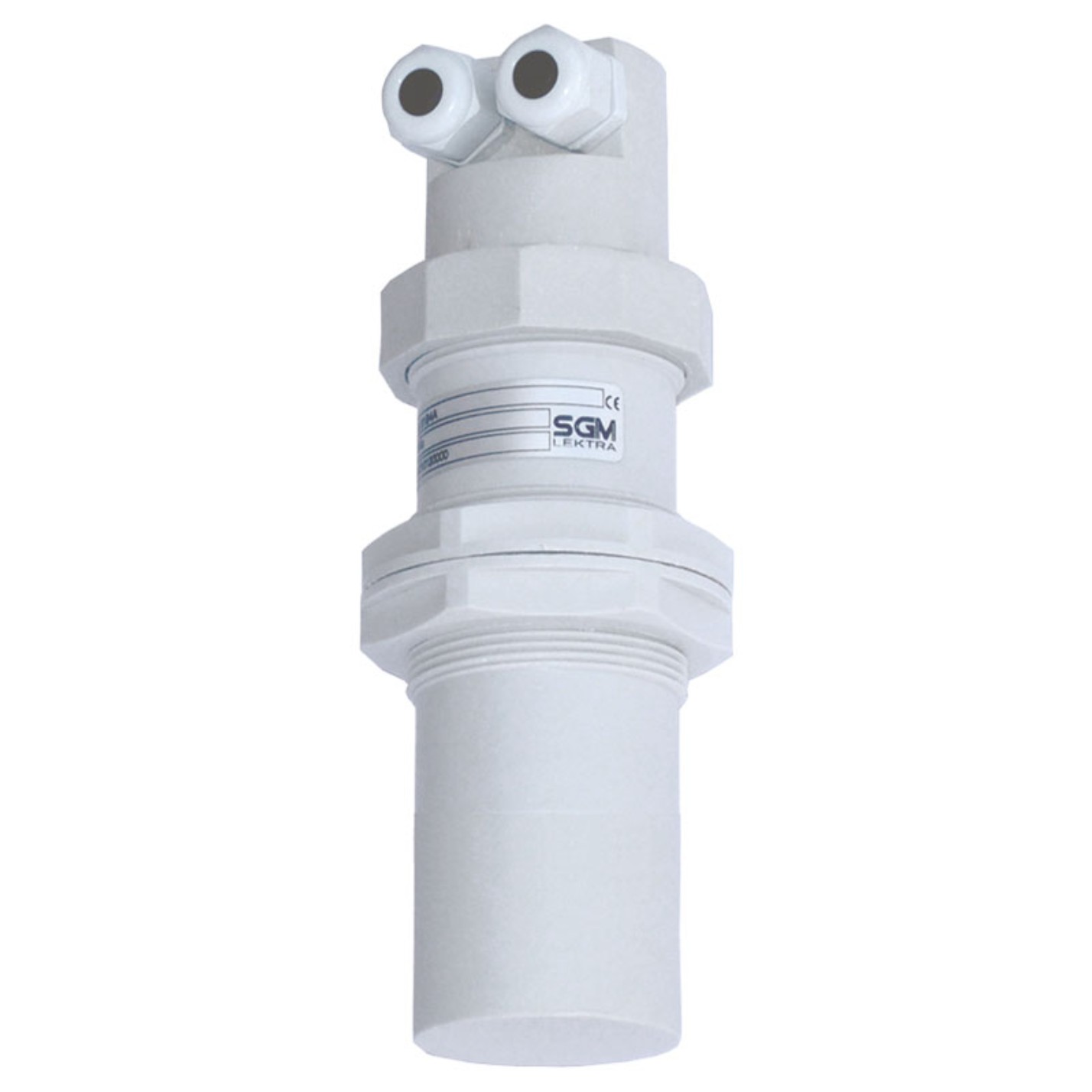

اندازه گیری سطح غیرتماسی /
مناسب برای مایعات و اندازه گیری سطح مواد پودری و گرانوله /
سنسور دمای دیجیتال یکپارچه برای جبران اندازه گیری /
منبع تغذیه 12,24Vdc o 24, 115, 230Vac /
حفاظت مکانیکی: IP67 / IP68 (سنسور) /
خروجی:
خروجی آنالوگ جریان 4 - 20 mA
رله خروجی (vers. 4-wires) /
HART or MODBUS RTU com. protocol
|
Housing material |
PP |
|
Mechanical installation |
2”GAS M (PP flange DN80 opt.) |
|
Protection degree |
IP66 / IP68 (sensor) |
|
Electrical connection |
Internal plug-in connectors |
|
Working temperature |
-30 ÷ +70°C; +80°C non-continuous |
|
Pressure |
from 0,5 to 1,5 bar (absolute) |
|
Power Supply |
12, 24Vdc or 24, 115, 230Vac (specify at the order) |
|
Power consumption |
2W |
|
Analog output |
4÷20mA, max 750ohm |
|
Relays output |
n°2 3A 230Vac (n.a.) |
|
Digital communication |
MODBUS RTU |
|
Max measure range |
max 0.25÷5m; max 0.40÷8m [In case of non perfectly reflecting surfaces, the maximu distance value will be reduced] |
|
Blind distance |
0,25m (5m vers.) / 0,40m (8m vers.) |
|
Temperature compensation |
digital from -30 to 80°C |
|
Accuracy |
±0,5% (of the measured distance) not better than ±3mm |
|
Resolution |
1mm |
|
Calibration |
2 buttons, or via VL6011 or by MODBUS RTU |
|
Warm-up |
5 minutes typical |
|
LCD Display |
Plug-in VL6011 (opt.) display/keyboard with 4 |
